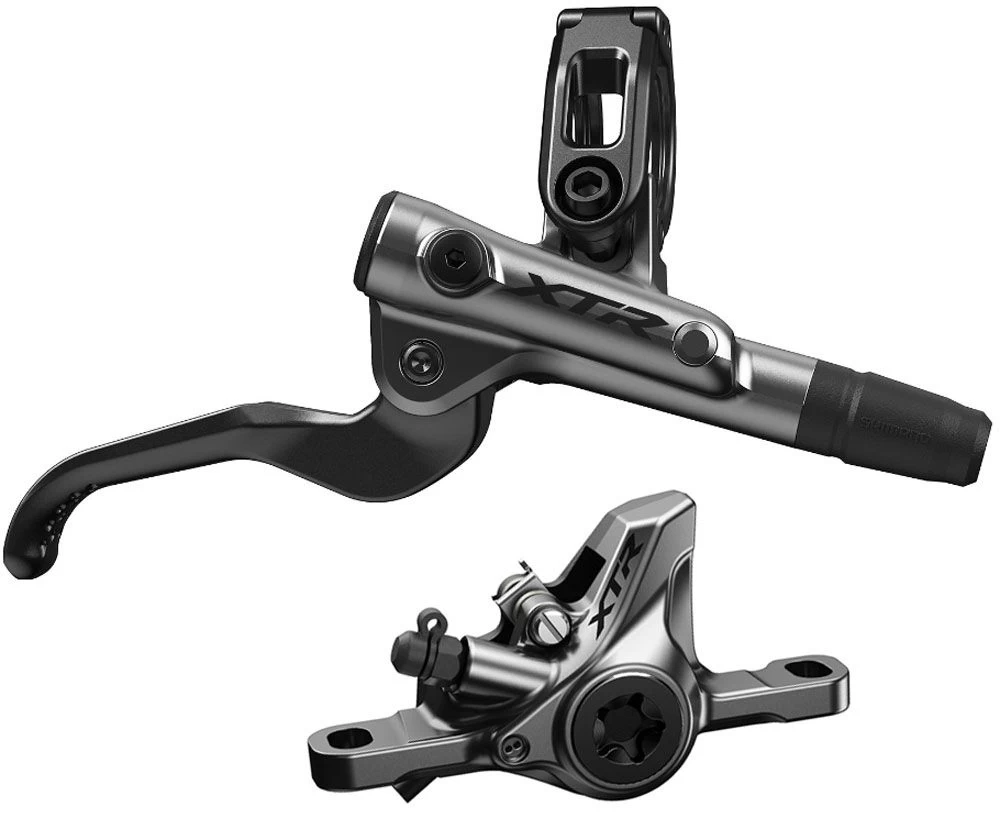

Shimano XTR BR-M9100 Disc Brake 1700mm Rear Disc Brakes – Rear Brakes | Bike-Discount

The two-piston brake (BR-M9100) comes in combination with a light XC brake lever, whose grip width is of course individually adjustable. The four-piston brake (BR-M9120) recalls its immense potential in combination with a special SERVO-WAVE brake lever (BL-M9120), whose grip width can also be adjusted without tools and which also has an adjustment option for the free travel. Both calipers have a one-piece aluminum design and are combined with highly rigid brake lines, so that the new XTR brake systems score with significantly faster response and less free travel.

The brake pads and brake discs have also been revised to match the newly developed brake calipers. The four-piston brakes use brake pads with cooling fins. (N03/04A, resin/metal). On the other hand, the pads without Kührippen (K02/04S, resin/metal; optionally K02/04Ti with titanium carrier plate) ensure good deceleration with low weight. The design of the brake discs is a further development of the successful ICE TECHNOLOGIES FREEZA design. While the further weight reduction of 5g and 10g is particularly attractive for the 140mm and 160mm discs, the 180mm and 203mm versions are characterised by a further improvement in heat dissipation of 20°C in intensive tests and are also pleasantly low-weight (203mm: minus 30g).

---

Features – Shimano XTR BR-M9100

• Quicker rebound between actions maintains rider concentration
• Greater flexibility and action-optimized cockpit layout
• Update brake lever shape
• Seamless operation
• High rigidity
• High-performance brake control
• High power
• 2-Piston Caliper
• Brake Caliper for Postmount Brake
• New high rigidity brake hose and 1-piece aluminum caliper
• Optimized ergonomic 2-finger brake lever
• One-Way bleeding
• I-Spec EV compatible – securing the shift lever on the brake lever
• RT-MT900 Centerlock rotors in 140, 160, 180, 203mm are available separately!

Product features

• Use: MTB
• Group: XTR M9100
• Model: BR-M9100 (rear)
• Brake type: Hydraulic Disc-Brake
• Brake lever: BL-M9100
• Lever length: 2-Finger
• Mount: right
• Clamp: open
• Reach adjustment: Yes, with tool
• Caliper: BR-M9100 (2-Piston)
• Brake mounting: Postmount
• Brake pads: K02Ti Resin without Fin
• Brake hose: SM-BH90-SS
• Brake hose lengths: rear 1700mm (shortable)
• Cable connection: Straight brake lever / Straight caliper
• One-Way bleeding: Yes
• Brake fluid: Mineral oil
• Recommended brake rotor: RT-MT900

Material

• Lever: Carbon
• Caliper: Aluminium

Color

• serial color

Weight

• from approx 312g (kit for front 800mm, w/160mm RT-MT900,  w/o adapter, w/2bolts, w/Resin pad)

---

Scope of delivery

• 1 Brake lever XTR BL-M9100 right
• 1 Brake caliper XTR BR-M9100 (2-Piston)
• 1 Brake hose SM-BH90-SS 1700mm long (shortable)
• 1 Tube Joint Kit
• 1 Brake pads K02Ti Resin without Fin
• 2 Screws for brake caliper
• The brake hose SM-BH90-SS is with mineraloil filled and pre-mountedon the caliper BR-M9100!

---
