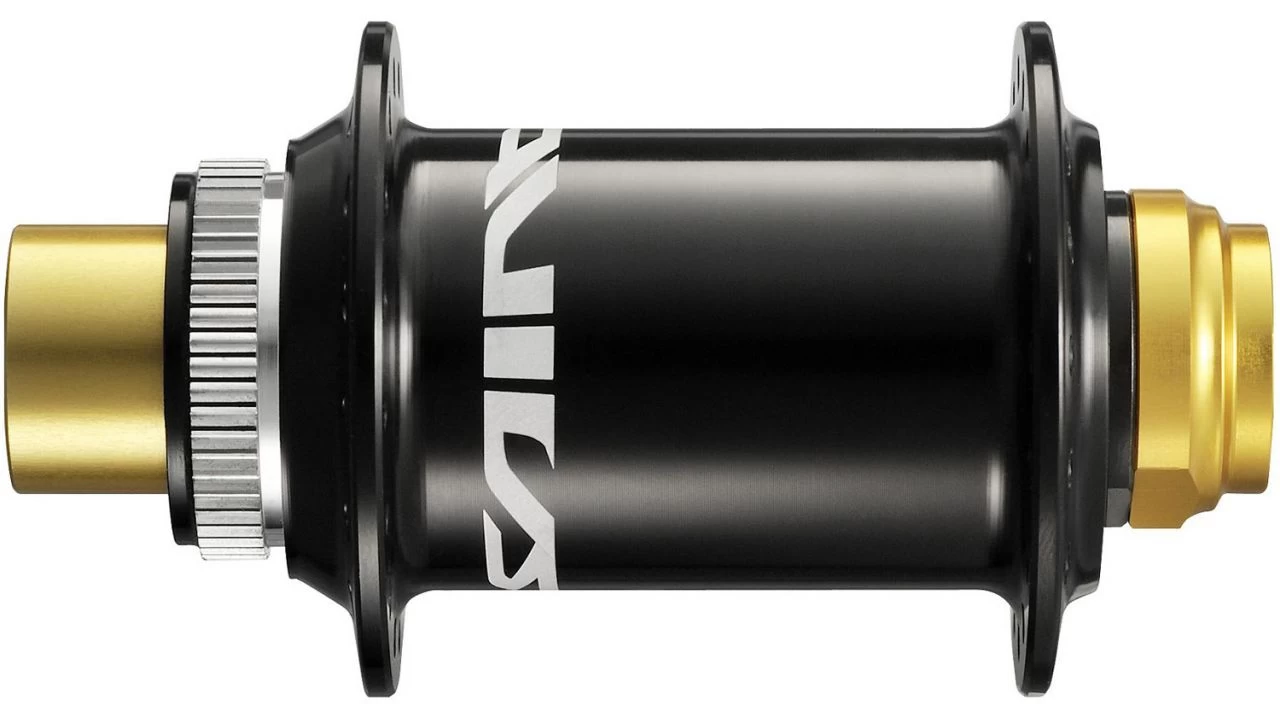

Name: Shimano SAINT HB-M820 Center-Lock Front Hub 20x110mm Front Hub | Bike-Discount are one of our latest products on Manobikeshop.com
SKU: EHBM820E
Price: 62.99 USD
Availability: InStock

Sale!

Shimano SAINT HB-M820 Center-Lock Front Hub 20x110mm Front Hub | Bike-Discount

Original price was: $89.99.Current price is: $62.99.

SKU: EHBM820E Categories: Front Hub, Hubs, Mountain Bike Parts Tag: Shimano

Friendly, efficient service, always online.
Quality Products, Quality Service
7-Day Returns, 100% Quality
Your satisfaction is 100% guaranteed.

The SAINT HB-M820 front hub from Shimano with angular contact bearings, and quality sealing, is perfect for all gravity MTB applications.

Features – Shimano SAINT HB-M820

Lighter Bearing construction
Anti-loosen lock nut
Quality sealing
Cup & Cone
Angular contact bearing
Adjustable bearing
CENTER LOCK rotor mount system

Product features

Use: MTB Downhill/Freeride
Group: SAINT M820
Model: HB-M820
Brake type: Center-Lock Disc
P.C.D.: left 52mm / right 52mm
Flange diameter: left 59.6mm / right 59.6mm
Flange distance: 61.6mm
Offset: 5.6mm
Hub: Labyrinth and contact seals
Type: 20mm E-Thru Axle
Axle length: 20x110mm

Spoke hole (choose variant)

32 hole
36 hole

Material

Hub: Aluminum Anodized
Axle: Aluminum Anodized

Color

Series color

Weight

202g (manufacturer information)

Scope of delivery

1 x Shimano SAINT HB-M820 Center-Lock Front Hub 20x110mm

E-Thru Axle 20x110mm not included!

Technologies

Cup & Cone Bearing

Angular contact bearings of the cup & cone type offer greater strength than sealed cartridge industrial bearings due their ability to displace lateral and vertical loads more effectively for super smooth rotation and longer durability. Angular contact bearings also allow easier maintenance, adjustability and serviceability.

Center Lock System

The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
