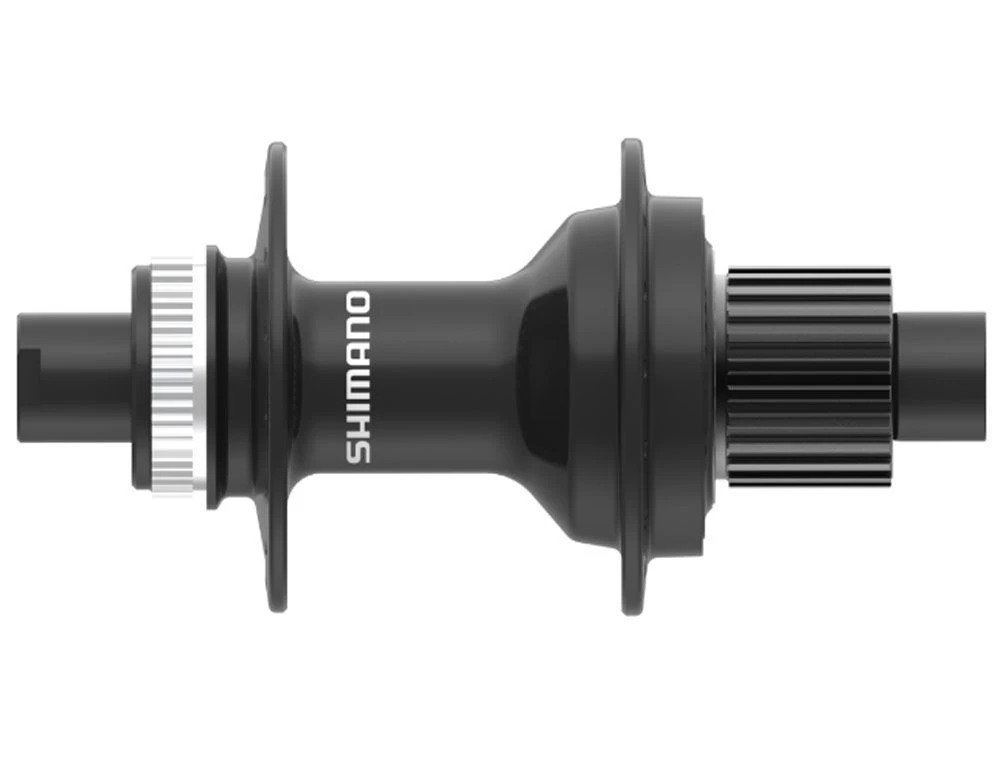

The FH-MT410 Boost 12-speed Micro-Spline rear hub from Shimano offers the well-known reliability and performance with E-Thru axle type.
Features – Shimano FH-MT410-B 12-speed Micro-Spline Center-Lock Boost 12x148mm
- Simple setup and reliable trail performance
- Easy disc brake rotor installation with spline mount and lock ring
- Stiff & lightweight 12mm E-THRU skewer system
- Labyrinth & Contact Sealing
- Smaller spline diameter for 10T top gear
- O.L.D. 148mm
- Only compatible with Shimano Micro-Spline cassettes!
Product features
- Use: MTB
- Model:Â FH-MT410-B
- Gear:Â 12-speed
- Cassette mount: Micro-SplineÂ
- Brake type: Center-Lock Disc
- P.C.D.: left 60mm / right 61mm
- Flange diameter: left 68.8mm / right 69.9mm
- Flange distance:Â 61.6mm
- Offset: 6.6mm
- Hub: Labyrinth and contact seals
- Type:Â E-Thru Axle Boost
- Axle length:Â 12x148mm
Spoke hole (choose variant)
- 32h
- 36h
Material
- Hub:Â Aluminum
- Axle:Â Steel
- Freehub body:Â Steel
Color
- black
Scope of delivery
- 1 x Shimano FH-MT410-B Center-Lock Rear Hub 12x148mm
Boost E-Thru Axle not included!
Technologies
Micro-Spline
MICRO SPLINE delivers lightweight aluminum FREEHUB body to reduce weight and 10 teeth top gear. Use combination with MICRO SPLINE cassette sprocket and FREEHUB.
Benefits & Features
- Lightweight aluminum MICRO SPLINE FREEHUB seamlessly integrates with small 10-tooth top gears.
- Smaller and more widely distributed splines limit cog damage on lightweight aluminum FREEHUB.
