You might not be looking for the lightest equipment there is, but you should never have to sacrifice performance. Molded from the same DNA as XTR, DEORE XT and SLX, the new M5100 series delivers Shimano’s proven 11-speed technologies at DEORE level.

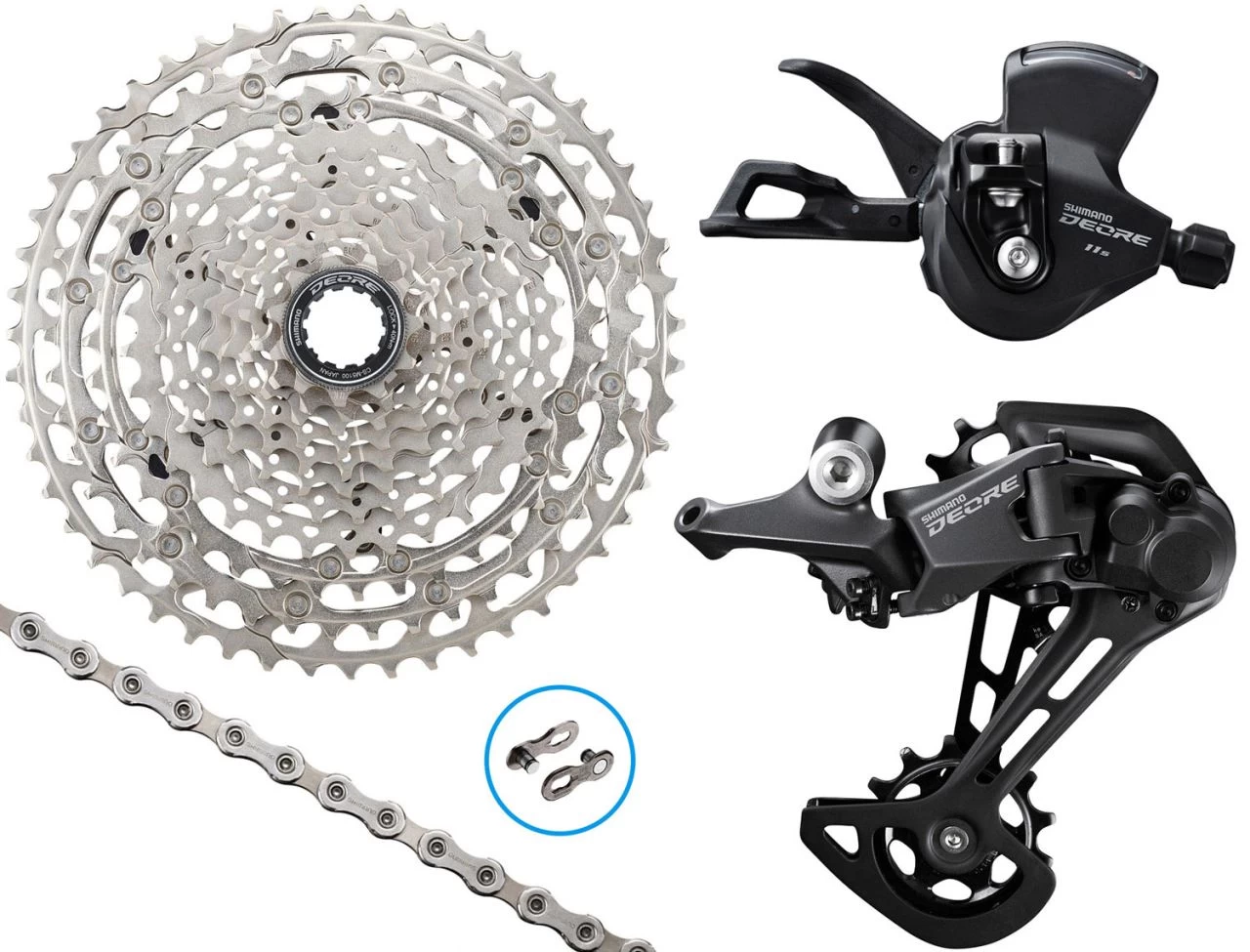

Scope of delivery – Shimano DEORE M5100 1×11-speed Upgrade-Kit 11-51 I-Spec EV
- 1 x Shimano DEORE SL-M5100 I-Spec EV 11-speed Shift Lever right incl. gear wire
- 1 x Shimano DEORE RD-M5100 11-speed Rear Derailleur SGS
- 1 x Shimano DEORE CS-M5100 11-speed Cassette 11-51
- 1 x Shimano CN-HG601 11-speed Chain 116 Links with Quick-Link

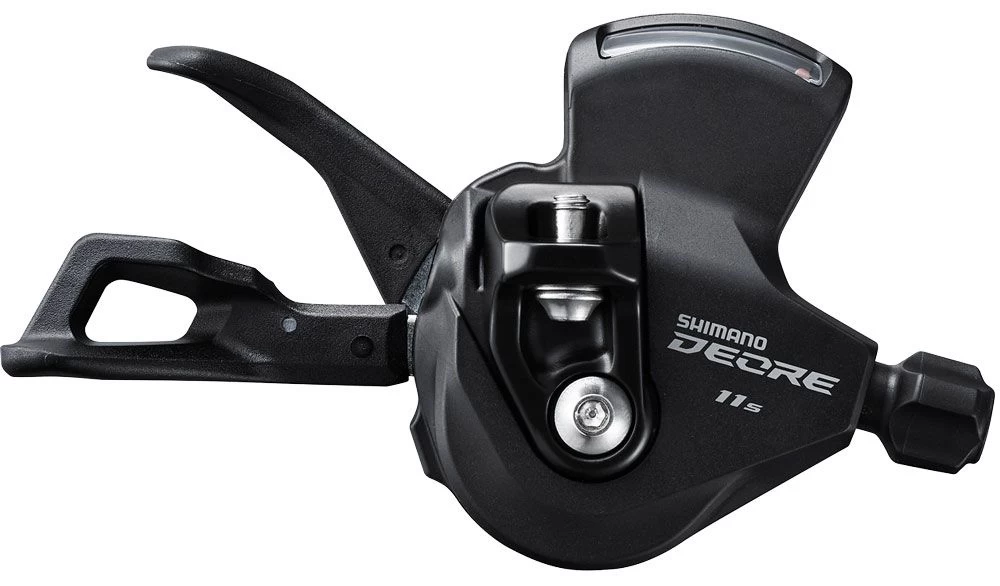

Shimano DEORE SL-M5100 I-Spec EV 11-speed Shift Lever right
The Shimano DEORE SL-M5100 11-speed Rapidfire Plus shift lever features a lightweight, ergonomic and compact design. In addition to the shifting behavior, the performance also increases. With 20 % quicker lever access time and 35 % less force. The DEORE 11-speed right-side shifter benefits from the same technologies as XTR, DEORE XT and SLX; I-Spec EV. This offers you greater ergonomic adjustments so you can tailor your handlebar con-trols much more to your liking. Together with the speed of RAPIDFIRE PLUS and a TWO-WAY RE-LEASE feature you can shift up and down the 11 gears of your cassette faster than ever before.
Features
- 20% quicker lever access time
- Compact design and lightweight
- Quicker lever access and light operation force maintains rider concentration
- Greater flexibility and action-optimized cockpit layout
- 2-WAY RELEASE for instant push/pull movements
Product features
- Use: MTB
- Group: DEORE M5100
- Model: SL-M5100-IR
- Shifter Type: Rapidfire Plus
- Gear rear: 11-speed
- Optical Gear Display: Yes
- Instant Release: No
- Multi Release: No
- 2-Way Release: Yes
- Cable adjust: Yes
Mounting
- I-Spec EV (I-Spec EV is not compatible with I-Spec II- and I-Spec B!)
Material
- Main lever body: Aluminum Painted
- Lever body: Aluminium, GFRP

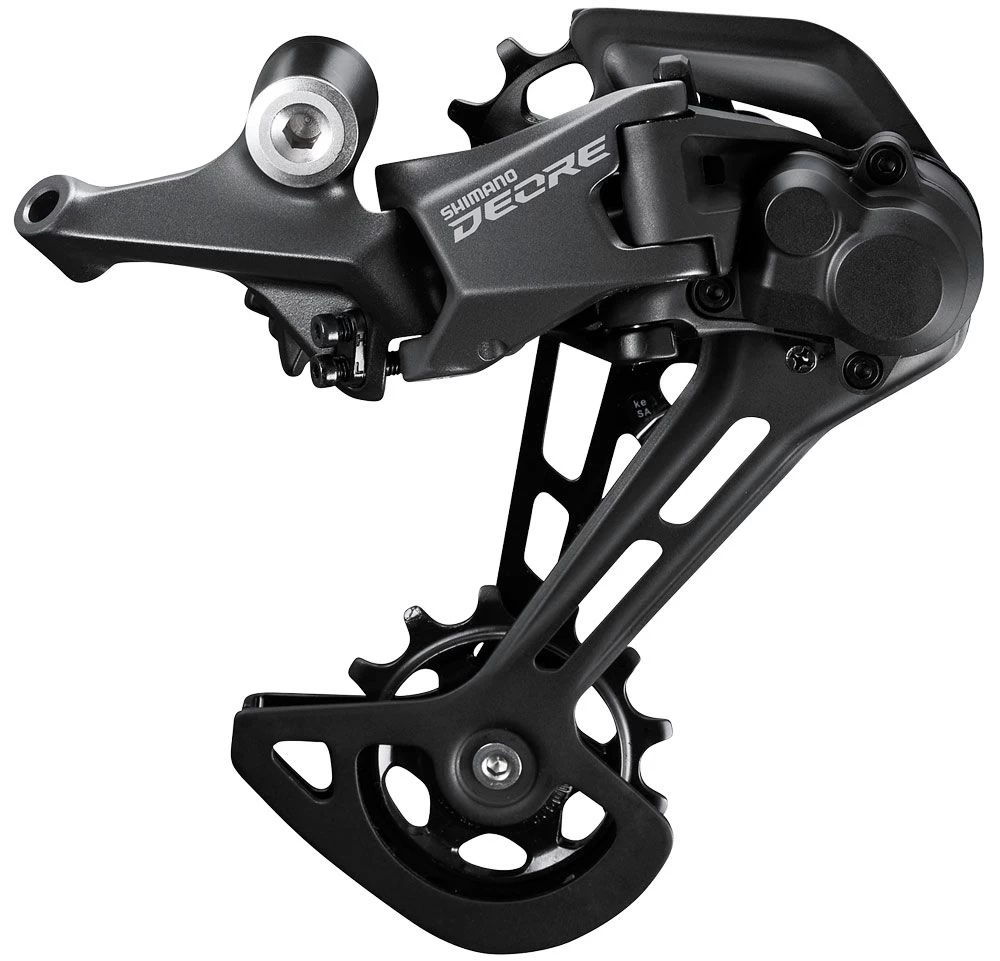

Shimano DEORE RD-M5100 11-speed Rear Derailleur
The Shimano DEORE RD-M5100 1×11-speed rear derailleur for 11-51 cassette features an elegant yet aggressive angled design. The derailleurs feature bigger 13-tooth pulleys and include Shimano’s proven Shadow RD+ low profile technology. The 11-speed DEORE rear derailleur enables precise and quick shifting within the 11-51T range. 13-tooth pulley wheels and SHIMANO SHADOW RD+ technology reduces chain chatter and gives you improved chain retention thanks to a stiffer derailleur arm and higher chain tension.
Features
- Shadow RD+ For optimal chain retention
- RD-M5100-SGS
- 51T max cog size
- Works with 11-speed 11-51 teeth cassettes
- Pulley size with 13T increased for reduced friction
Product features
- Use: MTB
- Group: DEORE M5100
- Model: RD-M5100
- Mount: Direct attachment (Conventional)
- Technology: Shadow RD+
- Gradations: SGS-Type 1×11-speed
- Compatible chain: HG-X CN-M5100 11-speed
- Max. teeth large sprocket: 51T
- Min. teeth large sprocket: 51T
- Max. teeth small sprocket: 11T
- Min. teeth small sprocket: 11T
- Max. Front Difference: 0T
- Total Capacity: 40T
Pulley cage
- Type-SGS long
Material
- Aluminum
- GFRP
- Stainless steel
- Steel

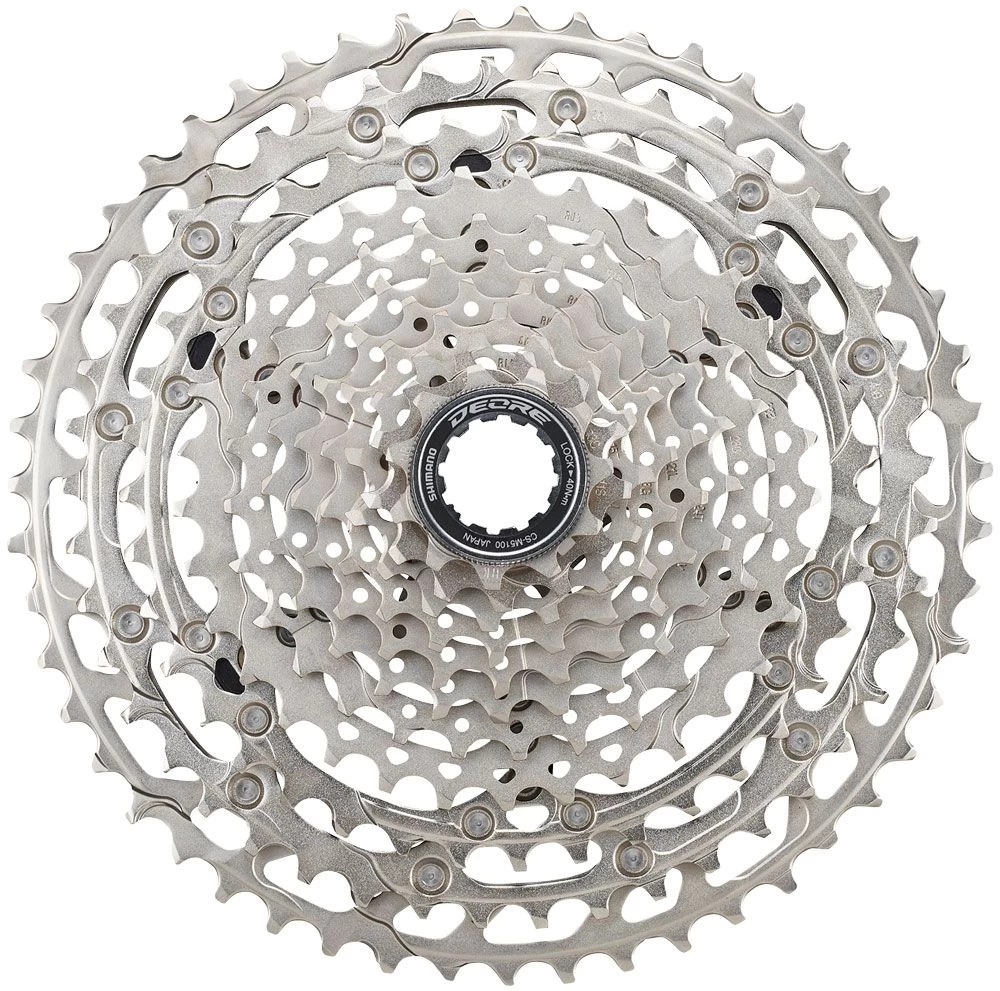

Shimano DEORE CS-M5100 11-fach Kassette 11-51
Die Shimano CS-M5100 ist die passende Kassette zur neuen DEORE 11-fach Gruppe. Die speziell geformten HYPERGLIDE-Ritzel weisen spezielle Zahnprofile sowie gezielt positionierte Steighilfen auf, die die Kettenführung beim Schalten optimieren. Dies ermöglicht eine schnelle, präzise Indexschaltfunktion. Die für die 11-fach Schaltung entwickelte HG-Kassette wurde umfangreichen Optimierungsmaßnahmen unterzogen, um eine supereffiziente Schaltfunktion zu erzielen.
Features
- Ride anywhere with smooth and precise HG shifting
- 11-speed cassette sprocket
- 11-51T wide gear range
Product features
- Use: MTB
- Group: DEORE M5100
- Model: CS-M5100-11
- Type: HG
- Gear: 1×11-speed
- Compatible chain: HG-X 11-speed
Gradation
- 11-51 (11-13-15-18-21-24-28-33-39-45-51 teeth)
Material
- Steel, Nickel plated

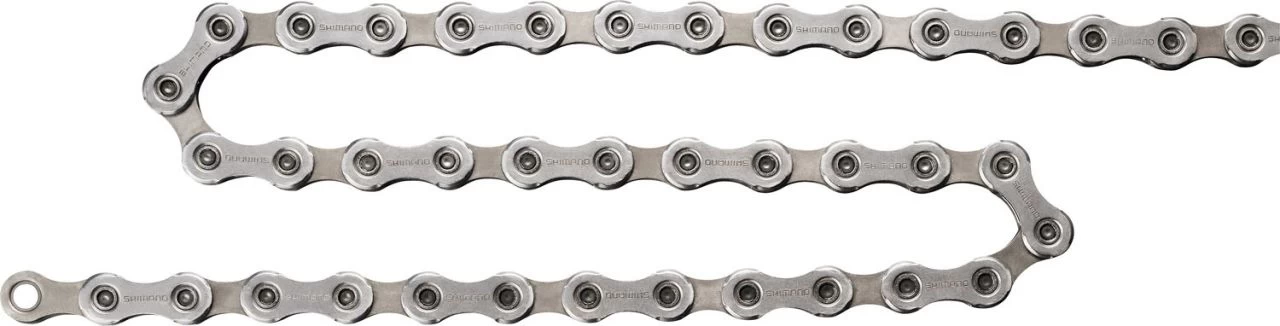

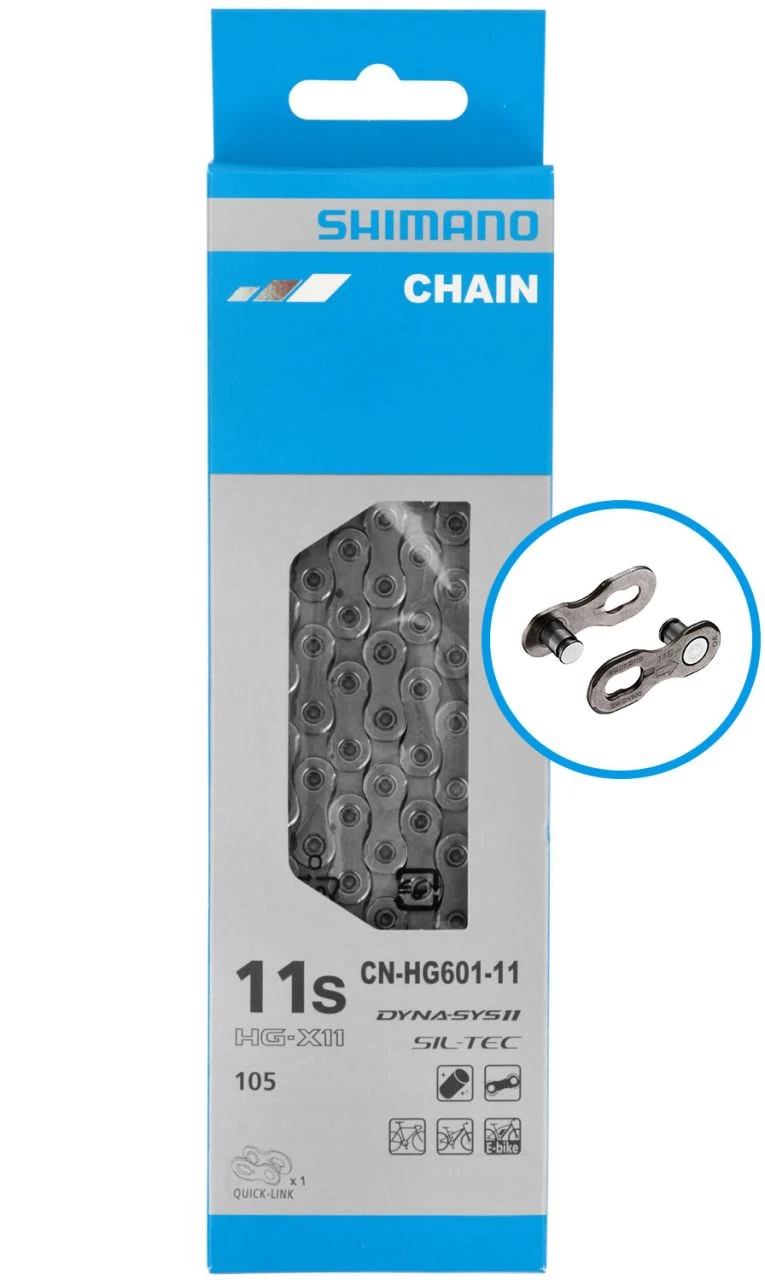

Shimano CN-HG601 11-speed Chain 116 Links with Quick-Link
The HG601-11 chain from Shimano is directional and features SIL-TEC treatment on the pin link plate for increased durability. It is compatible with 11-speed road, MTB, and E-BIKES thanks to its reinforced design. With an HG-X11 special asymmetric plate design and Shimano’s new SIL-TEC surface treatment, a quieter ride, increased chain life and better performance await you.
Features
- Connector Quick-Link – for the mounting and dismounting of 11-speed chains without tools
- Smooth and reliable shifting performance
- Directional 11-speed chain
- More efficient and silent, less maintenance
- SIL-TEC inner plate surface treatment
- MTB, Road, E-BIKE 11-speed compatible
- Reinforced chain for E-BIKE use
Product features
- Use: Road, MTB, E-Bike
- Model: CN-HG601-11
- Gear: 11-speed
- Type: HG-X11
- Directional design: Yes
- Chromizing Treatment Link Pin: Yes
- Pin Link Plate: Grey
- Roller Link Plate: SIL-TEC
- Connector: Quick-Link SM-CN900-11
Compatibility
- Dura Ace R9100
- Dura Ace 9000
- Ultegra 6800
- 105 5800
- XTR M9000/9020
- XT M8000/8020
- SLX M7000-11
- Deore M5100
- 11-speed E-Bike (STEPS E6000/8000)
Links
- 116
Technologies
Rapidfire Plus
I-Spec-EV
I-SPEC EV creates a clean and action-optimized cockpit that provides greater focus and flexibility for a wider range of riders.
Benefits & Features
- Wider adjustment range allows riders of various styles, preferences and body styles to adjust to the optimal position.
- Ergonomic design, quicker lever access, and light operation enhance rider comfort and concentration.
With its wider adjustment range, I-SPEC EV levers can be adjusted to the optimal position to match a wider range of riding styles (ENDURO/XC/etc.), rider preferences and rider anatomies (hand and arm alignment). I-SPEC EV increases brake lever rigidity by moving the brake clamp position inward to create an extra point of contact between the bar and the lever. This additional bracing drastically increases bike control and braking engagement while maintaining space between the clamp and support point for other handlebar accessories.
