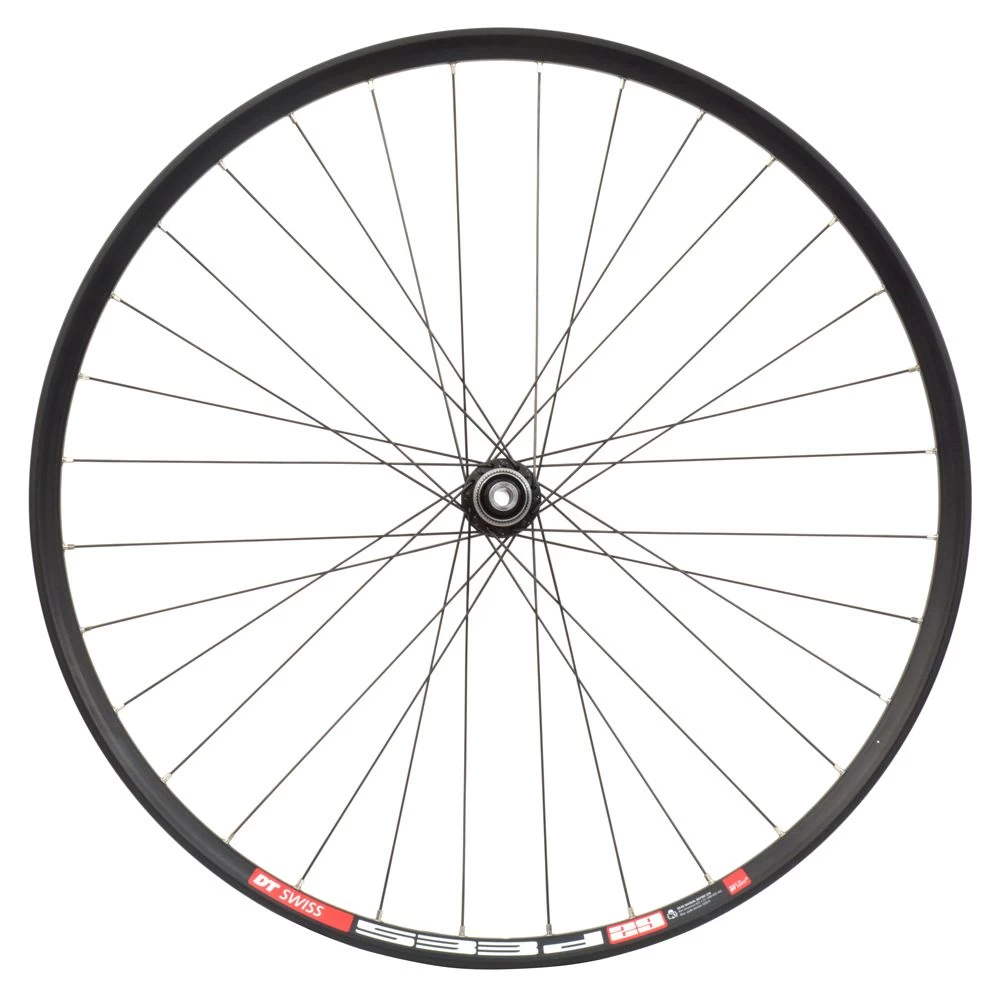

Shimano Custom Made 29″ XT FH-M8010 12x142mm / DT Swiss 533d Disc Rear Wheel Wheel 29″ Rear Wheel | Bike-Discount

Custom Made rear wheel made of high quality components for Center-Lock disc brake.

---

Product features

• Use: MTB
• Wheel size: 29″
• Brake type: Disc Center-Lock
• Axle Fixing method: 12 x 142mm
• Freehub body: Shimano 8-/9-/10-speed, MTB 11-speed
• Recommended Tires: 29 x 1,10-2,50″

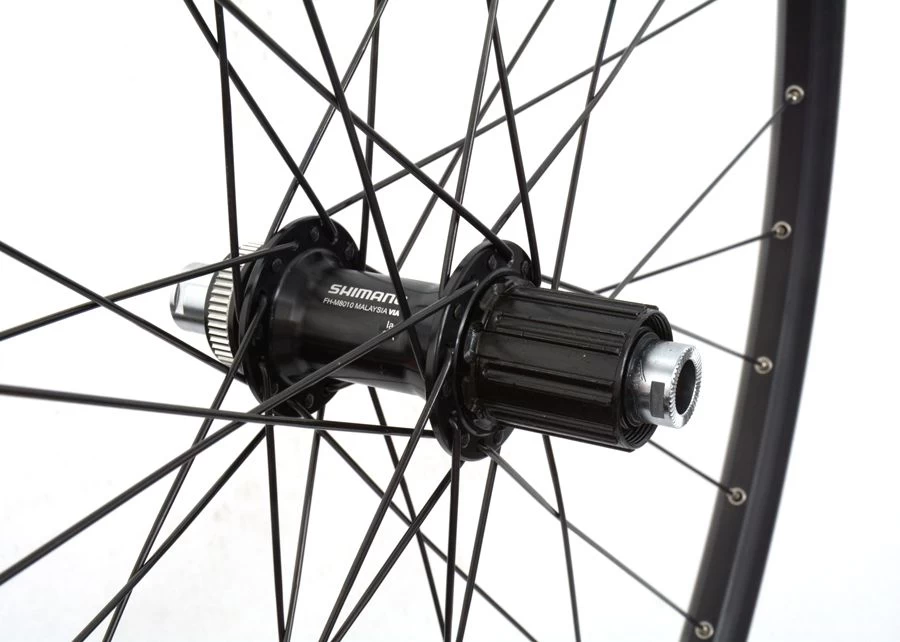

• Rear Wheel Hub
  • Model: Shimano XT FH-M8010
  • Freehub body: Shimano 8-/9-/10-speed, MTB 11-speed
  • Hole Circle Diameter: Left 44mm / right 45mm
  • Spokes: 32 hole
  • Brake type: Center-Lock Disc
  • Flange distance: 57.4mm
  • Over Lochnut: 142mm
  • Assembly / Axis: 12 x 142mm
• Rim
  • Model: DT Swiss 533d
  • Size: 29″
  • Dimension: 622x22C
  • Type: Clincher
  • Valve hole: 6.5mm
• Spokes and nipples
  • DT Swiss  2.0 – 1.8 – 2.0 black anodized
  • Brass nipples, silver

Weight

• 1190g

Max. System weight: 120kg

---

Scope of delivery

• 1 Rear Wheel 29″ Shimano XT Disc Center-Lock FH-M8010 Hub 12x142mm with DT Swiss 533d Disc Rim

Thru Axle and rim tape are not included!

---

E-Thru Axle

The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism and new fixing structure. The 15mm thru-axle system is 15% stiffer torsionally and 25% stiffer in transverse shear than a traditional 9mm Quick Release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-THRU Axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed.

Center-Lock System

The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
