The new SHIMANO 105 ST-R7170 shift/brake lever features Di2 electronic shifting for the first time, bringing precise, intuitive gear changes to even more riders. Reach adjustment and customized button functions allow you to dial in your ideal ergonomics.
THE SCIENCE OF SPEED: Shimano 105 Di2 2×12-speed STI Dual Control Set ST-R7170
The next-generation SHIMANO 105 featuring Di2 draws on the design philosophy The Science of Speed bringing fresh momentum, comfort and control. It lets you embrace an open road, full of infinite possibilities. Go deeper into your journeys. See the world in a fresh new way. And enjoy the gift of each new day.
The new SHIMANO 105 brings Di2 shifting to a new set of riders. For those who have only experienced mechanical shifting and ergonomics, SHIMANO 105 Di2 represents a transformation of the road cycling experience. With function and technologies inherited from DURA-ACE and ULTEGRA, SHIMANO 105 is the culmination of years of research and development. With a shared Di2 platform, sophisticated ergonomics, SHIMANO 105-optimized gear combinations, and an exceptional brake system, the new SHIMANO 105 marks a new era of affordable performance.
SHIMANO 105 Di2 brings a beautiful minimalist cockpit – free of wires and ports –that’s more aesthetic and aerodynamic. Meanwhile the ergonomics of the all-new dual control levers ensure superb comfort and control whatever your hand position. Something you’ll especially appreciate on longer rides when fatigue sets in. Plus the shifters have over 3 years of battery life – so no worries there!
Features – Shimano 105 Di2 ST-R7170 2×12-speed STI Dual Control Set for hydraulic Disc Brakes
- Clean cockpit: Wireless connection enhances the aesthetic of your bike while keeping shifting lightning fast
- Longer lasting. Uses two CR1632 batteries (battery life: 3.5 to 4 years)
- Compact, ergonomic performance cascaded from DURA-ACE
- Raised hood peak improves ergonomics, while a longer hood body increases hand support

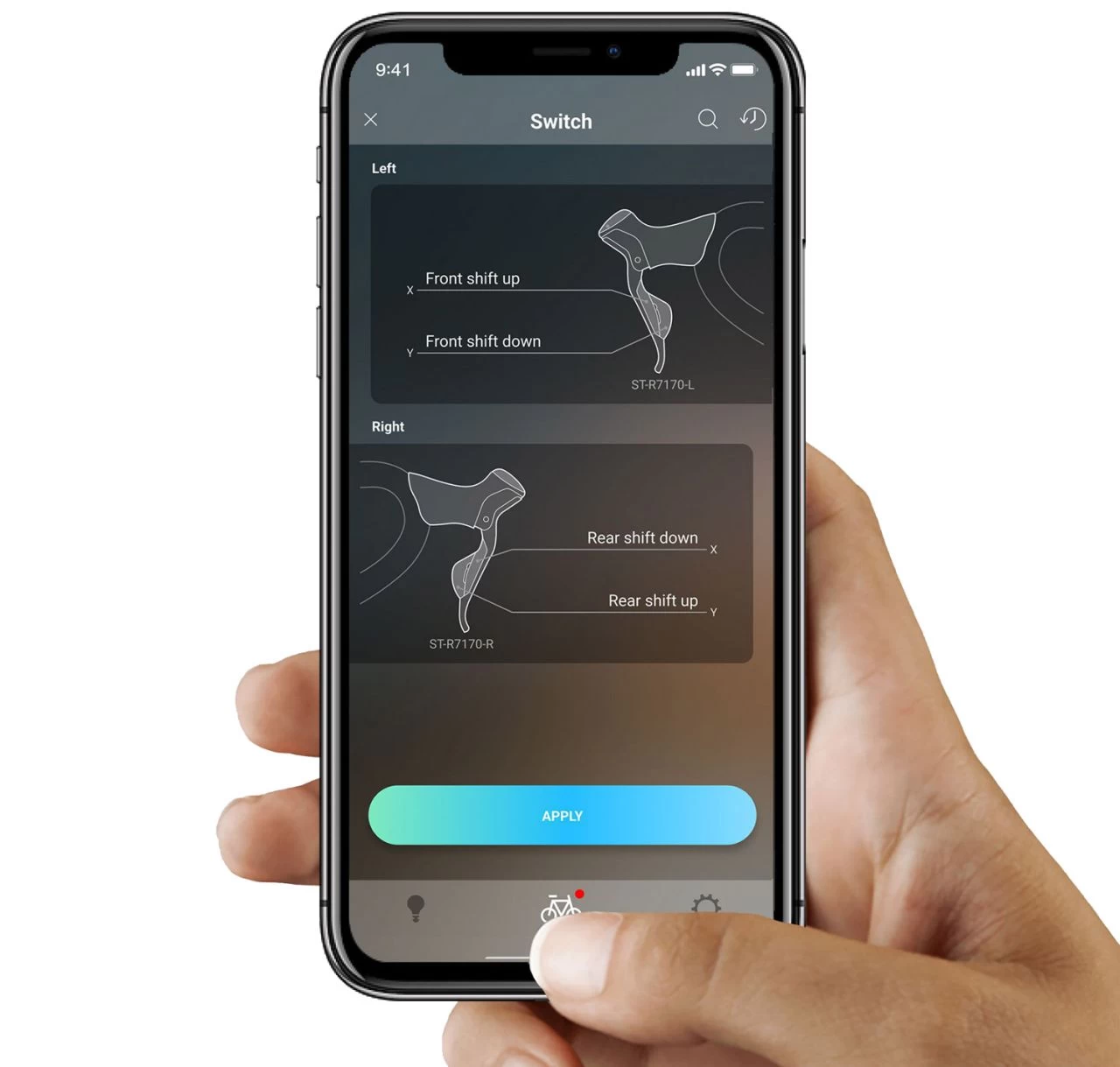

- Easily change button function with the E-TUBE app
- Find your optimum lever position with simple reach adjust
Product features
- Use: Road
- Group: 105 Di2 R7100
- Model: ST-R7170 Set
- Type: Dual-Control (STI)
- Handlebar mounting: left / right
- Gear front: 2-speed
- Gear rear: 12-speed
- Optical gear display: No
- Lever reach adjust: Yes
- Handlebar diameter: 23.8mm/24.2mm
- Brake-type: Hydraulic Disc Brake
- Recommended brake caliper: BR-R7170
- Brake lever brake hose (Kit): SM-BH90-J-SSR, SM-BH90-JK-SSR
- Brake lever funnel bleeding: Yes
- Brake lever hose joint: Straight
- Compatible electric wire: EW-SD300
- E-tube Project: Yes
- E-tube port (pcs): each 1
- E-tube connector (pcs): 0
- Di2 Wireless-Chip: Yes
- Battery: each CR1632 x 2
Material
- Body: CFRP
- Lever: Aluminium, painted
Color
- Series color
Weight
- approx. 424g / pair (manufacturer information)
Scope of delivery
- 1 x Shimano 105 Di2 ST-R7170 2×12-speed STI Dual Control Set for Hydraulic Disc Brakes
- 4 x CR1632 Battery
Brake Calipers BR-R7170, Brake Hoses SM-BH90-J-SSR / SM-BH90-JK-SSR and Mineraloil SM-DB-Oil not included!
Technologies
SEIS SHIMANO ELECTRONIC INTELLIGENT SYSTEM
